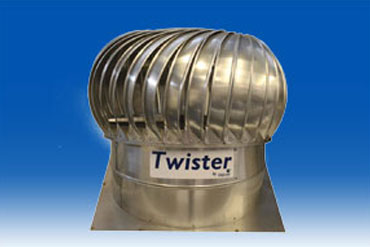

Twister

Twister is a combination of both natural and forced air ventilation system, it is a free spinning ventilator which works on wind energy without a cost.

Features

The 110mm neck directly fits a regular 110mm SWR pipe and also fits 75mm & 90mm SWR pipe by virtue of reducer available in the market
Enhances the architectural & aesthetic appearance of the building.
Robust construction. The special polypropylene composition makes it light weight, strong & durable construction for resistance against extreme climatic conditions.
Rigid "Spider Type" frame design to withstand heavy rain, cyclone & storms
Dynamically balanced for frictionless rotation even at lowest wind velocity.

APPLICATION

Eco-toilets
Community toilets
Portable toilets
Pits
Sewer vent pipes

Technical Specification

MODEL	TWISTER-100 (Polypropylene / Plastic) - (4.5 Inch)
Turbine Diameter	245mm
Neck / Throat Diameter	110mm
No. of Vanes (Blades)	12 Vanes
Height	205mm
Base Ring MOC (Mounting Ring)	Polypropylene Thickness 2mm
Vanes MOC	Polypropylene Thickness 1.5mm
Rotation	Twin Sealed 6000ZZ & 6201ZZ bearings and self lubricating bush of Dupont Zytel 101L Polyamide 66 resin to ensure frictionless rotation even at lowest wind velocity
Center Shaft	Stainless Steel
Inner Arms	Polypropylene
Outer Arms	Polypropylene
Nett. Weight	0.75 Kgs (Approx.)
Gross Weight	1.2 Kgs (Approx.)
Packing ASSEMBLED	5 ply seaworthy corrugated box size Size: 250 x 250 x 230 mm
